PA 1601 Automotive Windshield Polyurethane Adhesive
Advantages
One component moisture curing polyurethane sealant---Primerless
Excellent bonding and sealing performance
No corrosion and pollution to substrates, environment friendly
No .bubbles during application, smooth and fine appearance
High viscosity, excellent initial bonding strength
High strength and elasticity
Applications
Specially for windshield and side & back window glass bonding
|
PROPERTY PA 1601 |
|
|
Appearance |
Black homogeneous paste
|
|
Density (g/cm³) |
1.35±0.05 |
|
Tack Free Time (min) |
25-35 |
|
Curing Speed (mm/d) |
3.2 |
|
Elongation at break(%)
|
400 |
|
Hardness (Shore A) |
60 |
|
Tensile strength(MPa)
|
6.5 |
|
Shear Strength(Mpa) |
4.0 |
|
Tear strength( N/mm)
|
8.0 |
|
Non-volatile contents Content (%) |
97 |
|
Operation Temperature ( ℃) |
5-35 ℃ |
|
Service Temperature ( ℃) |
-40~+90 ℃ |
|
Shelf Life (Month) |
9 |
Storage Notice
1.Sealed and stored in cool and dry place.
2.It is suggested to be stored at 5~25 ℃, and the
humidity is less than 50%RH.
3.If the temperature is higher than 40 ℃ or the humidity is more than 80%RH, the shelf life may be shorter.
Packing
310ml cartridge
400ml/600ml sausage
20pcs/box

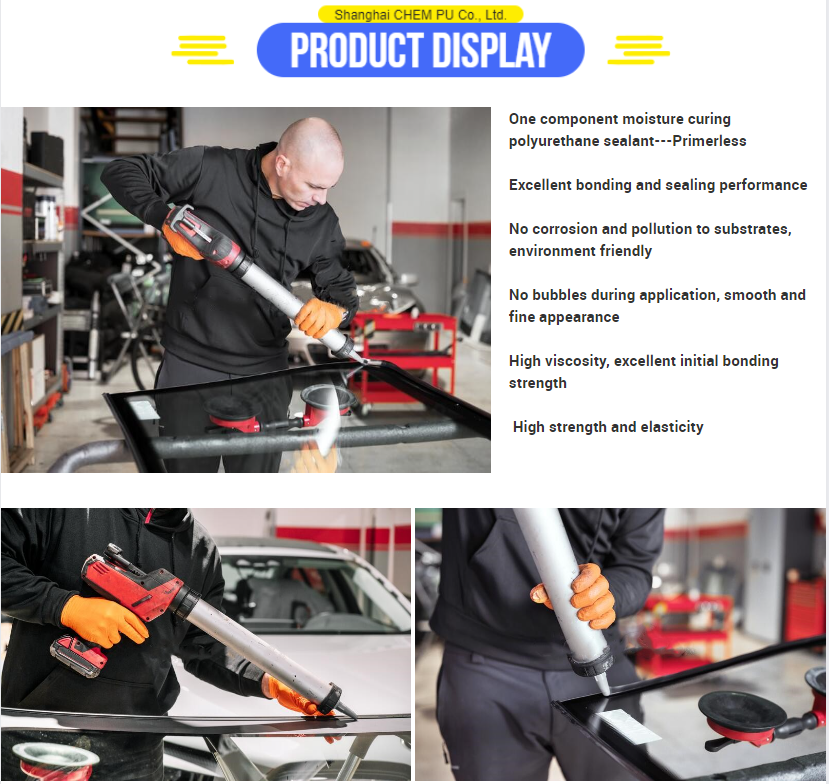

Operation
Clean before operation
Clean and dry all surfaces by removing foreign matter and contaminants such as oil dust, grease, frost, water, dirt, old sealants and any protective coating. Dust and loose particles should be cleaned.
Direction of operation
Tool: Manual or pneumatic plunger caulking gun
For cartridge
1.Cut nozzle to give the required angle and bead size
2.Pierce the membrane at the top of the cartridge and screw on the nozzle
Place the cartridge in an applicator gun and squeeze the trigger with equal strength
For sausage
1.Clip the end of the sausage and place in barrel gun
2.Screw end cap and nozzle on to barrel gun
3.Using the trigger extrude the sealant with equal strength
Attention of operation
Wear suitable protective clothing, gloves and eye/face Protection. After contact with skin, wash immediately with plenty of water and soap. In case of accident or if you feel unwell, seek medical advice immediately
Warranty and Liability
All product properties and application details based on information are ensured to be reliable and accurate. But you still need to test its property and safety before application. All advices we supply can’t be applied in any circumstances.
CHEMPU don't make assurance of any other applications outside the specification until CHEMPU supply a special written guarantee.
CHEMPU is only responsible to replace or refund if this product is defective within the warranty period stated above.
CHEMPU makes it clear that will not take responsible for any accidents.
